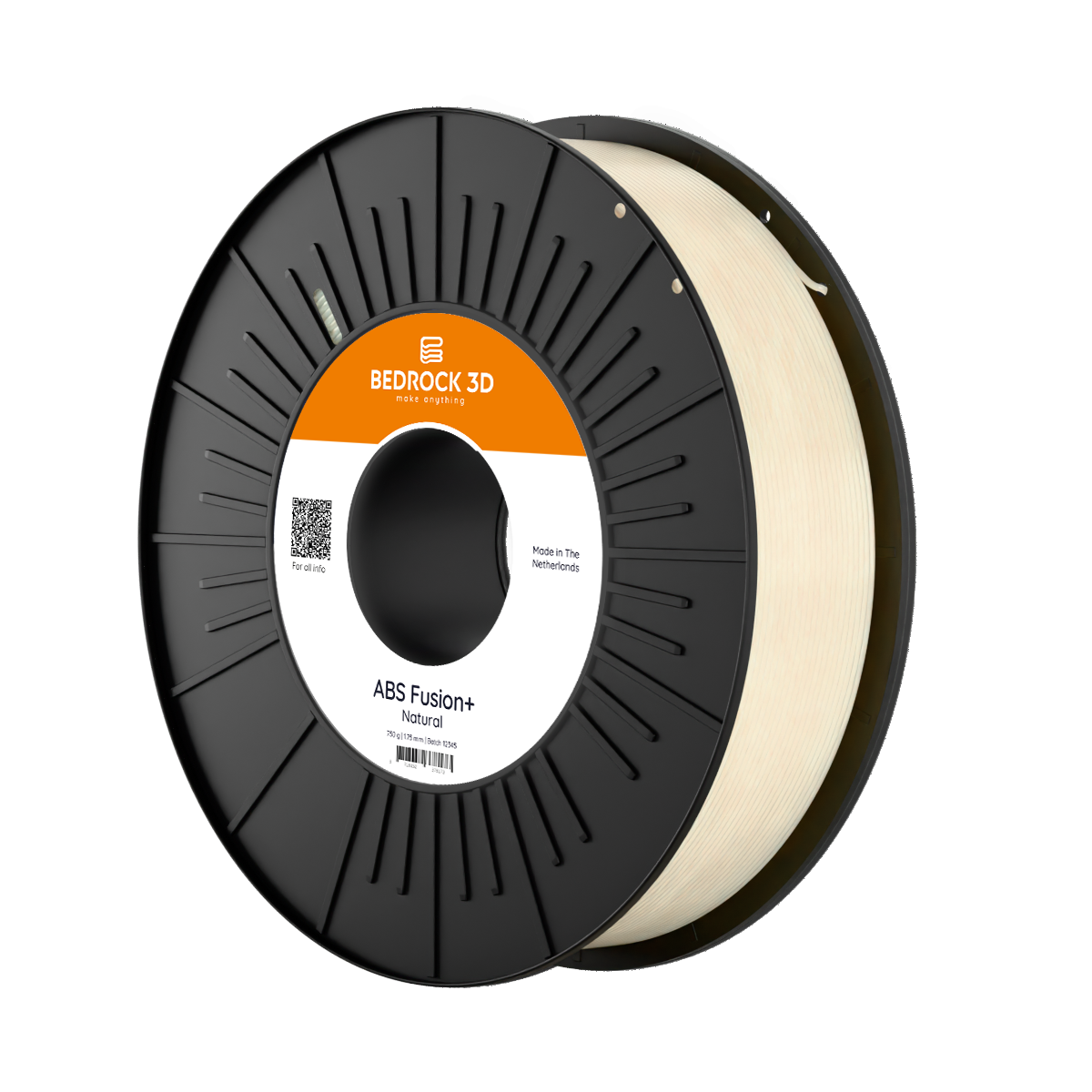

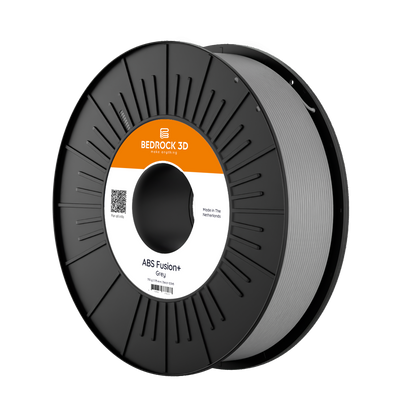

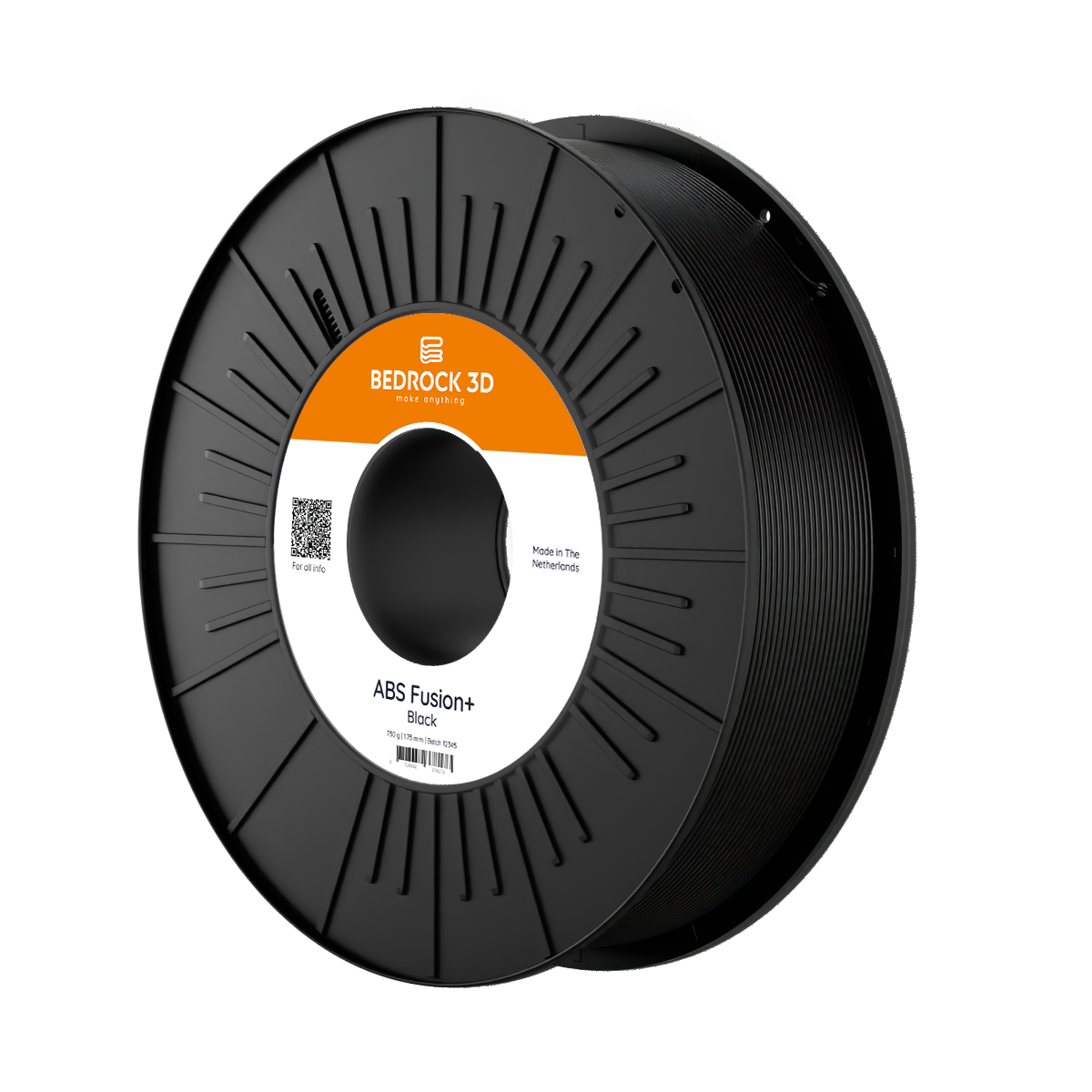

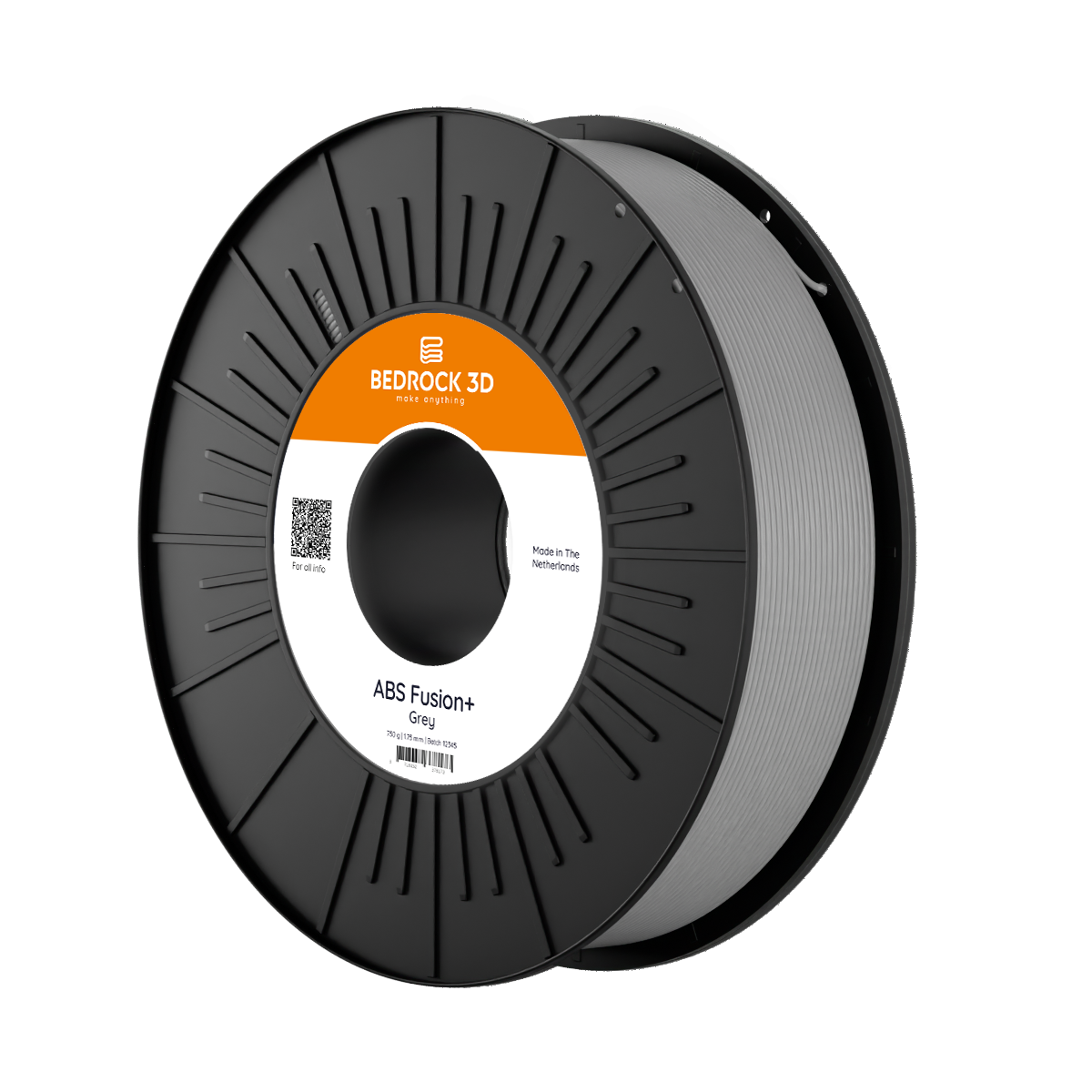

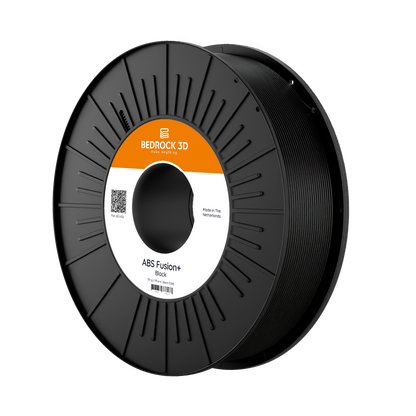

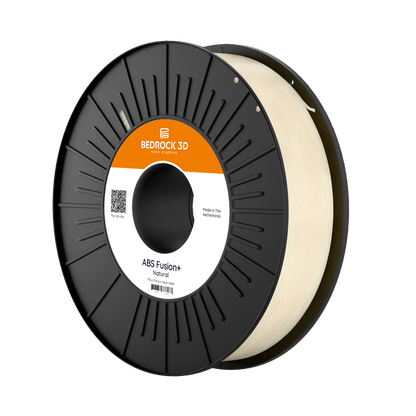

ABS Fusion +

Traditional ABS can be tricky, but BEDROCK 3D ABS Fusion+ changes the game. With its improved dimensional stability and optimized flow mean you can achieve professional-quality results without frustration.

The material is optimized to adhere to the build plate minimizing warp of the parts. This results in a low failure rate. Beneficial for your productivity, especially for large parts. Whether you’re producing durable jigs, fixtures, or automotive parts, this material gives you the engineering performance of ABS, without the usual print challenges.

The availability of large reels allows large volume prints or save you time loading new spools.

To top it off, BEDROCK 3D ABS Fusion+ adheres to our BVOH water-soluble support, no more hassle with chemicals, just dissolve your support in water after printing!

Material Highlights

• Easy to print
• Direct printing on heated glass or print bed surfaces
• High heat resistance
• Adheres to water soluble support - perfect match with our BVOH

• Jigs and fixtures
• Automotive parts
• Hot water applications

• Nozzle Temperature: 240-260 °C
• Build Chamber Temperature: -
• Bed Temperature: 100 - 120 °C
• Bed Material: Glass (use a small amount of adhesive spray to protect the glass bed)
• Nozzle Diameter: ≥ 0.4 mm
• Print Speed: 40 - 300** mm / s

  ** To achieve faster printing speeds, it may be necessary to raise the nozzle temperature. The highest speed mentioned has been determined through our latest tests, ensuring optimal surface quality with a 0.4mm nozzle and 0.2mm layer height. Please note that as printing technology and equipment evolve, we anticipate the possibility of achieving even faster speeds in the future.

We’ve got you covered with ready-to-go print profiles, just download and start creating.

• Tensile Strength (MPa): 17.9 (ZX), 29.5 (XY)
• Flexural Modulus (MPa): 878 (ZX), 1133 (XZ), 1406 (XY)
• Elongation at Break: 2.1 % (ZX), 10.9 % (XY)
• Impact Strength Izod notched (kJ/m2): 2.2 (ZX), 38.4 (XZ), 26.4 (XY)
• Impact Strength Izod unnotched (kJ/m2): 6.6 (ZX), 131.1 (XZ), 73.1 (XY)
• HDT @ 0.45 MPa: 91 °C
