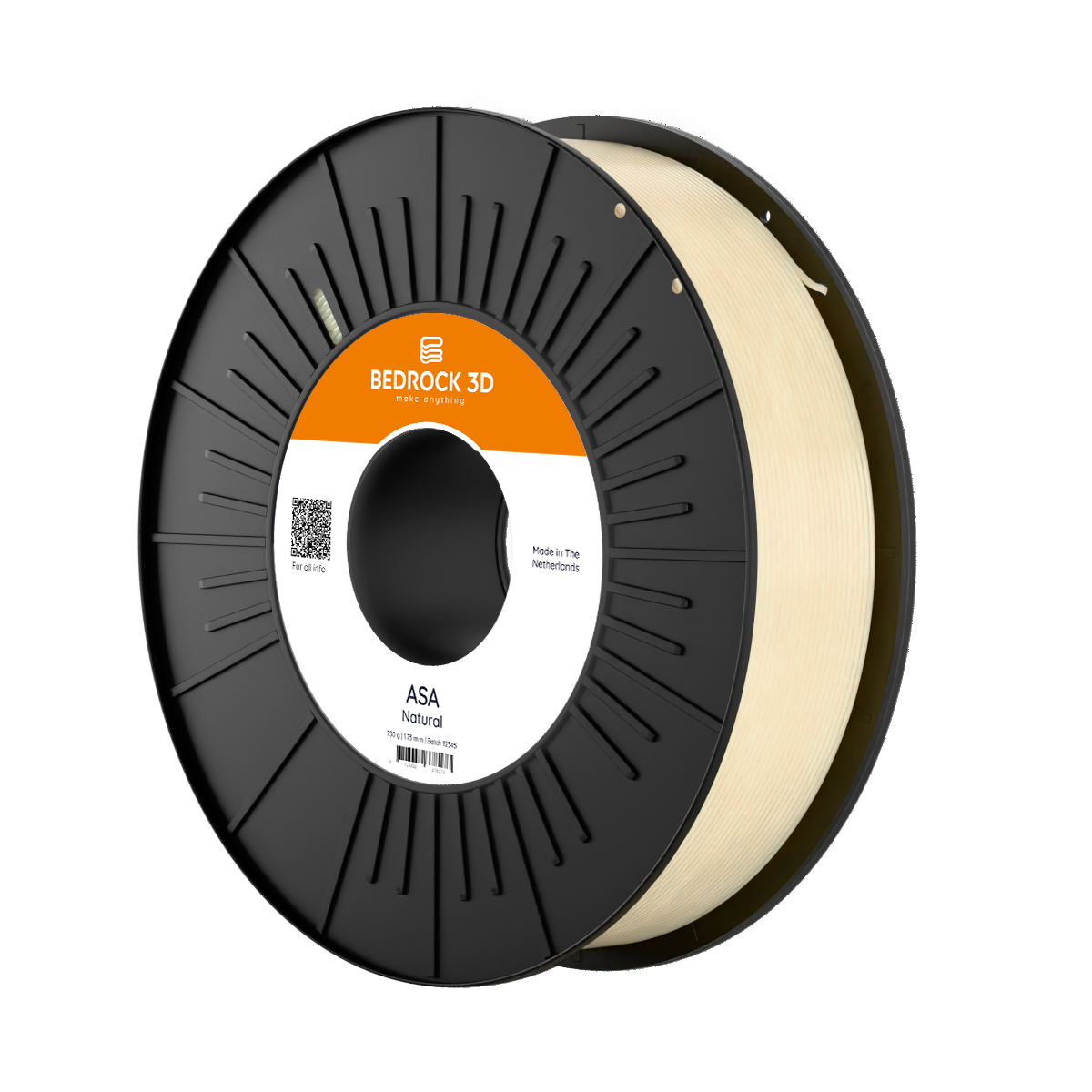

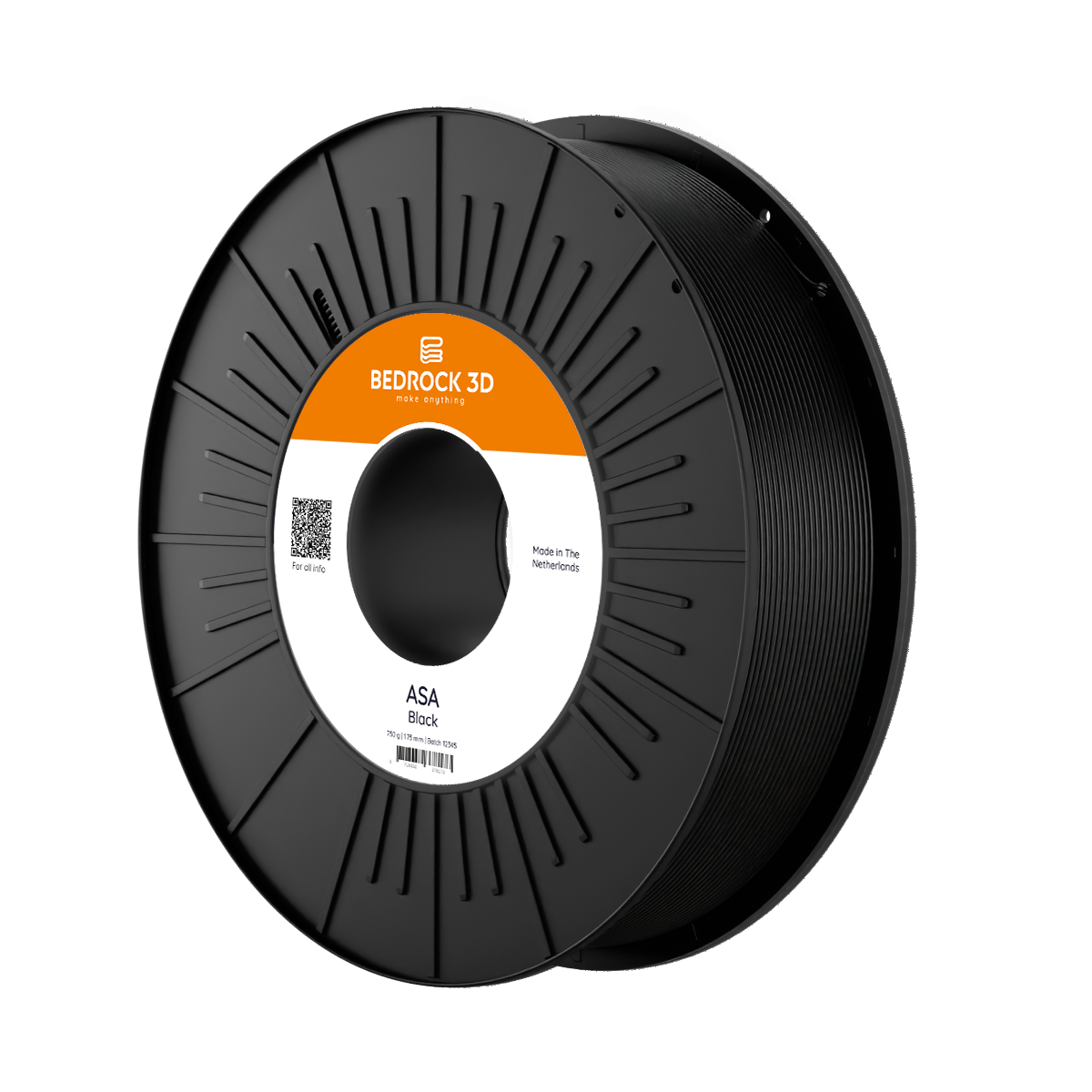

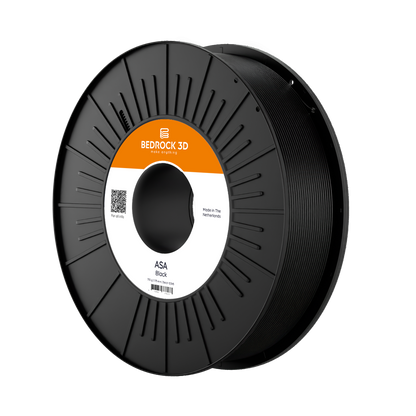

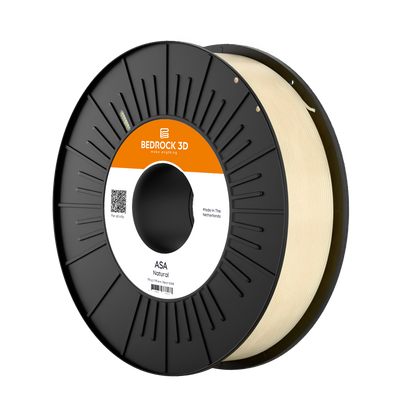

ASA

BEDROCK 3D ASA combines the mechanical strength of ABS with superior resistance to outdoor conditions. From functional prototypes to fixtures, appliances, and drones, this filament delivers long-lasting reliability.It’s the ideal choice when your prints need to stay strong, stable, and vibrant, no matter the weather.

A high deflection temperature indicate good applicability of ASA in environments where performance needs to be assured over a wide temperature range. The chemical resistance of ASA is generally perceived as good. Oils, greases, gasoline weak acids and alkaline solutions have little impact on the integrity of the material.

Material Highlights

• UV stabilized
• Weather resistance
• Long life span
• Very tough
• Resistant to wear and tear
• Chemical resistance

• Outdoor use
• Functional prototypes
• Chemical environment
• Reasonable heat resistance
• Product housing

• Nozzle Temperature: 260-280 °C
• Build Chamber Temperature: Closed chamber, passively heated
• Bed Temperature: 100 - 120 °C
• Bed Material: Spray, PC adhesive
• Nozzle Diameter: ≥ 0.4 mm
• Print Speed: 30 -60 mm / s

We’ve got you covered with ready-to-go print profiles, just download and start creating.

• Tensile Strength (MPa): 12.0 (ZX), 34.6 (XY)
• Flexural Modulus (MPa): 1041 (ZX), 1638 (XZ), 1733 (XY)
• Elongation at Break: 1.0 % (ZX), 4.5 % (XY)
• Impact Strength Izod notched (kJ/m2): 1.9 (ZX), 11.4 (XZ), 8.7 (XY)
• Impact Strength Izod unnotched (kJ/m2): 6.8 (ZX), 39.3 (XZ), 36.8 (XY)
• HDT @ 0.45 MPa: 101 °C
