SKU:

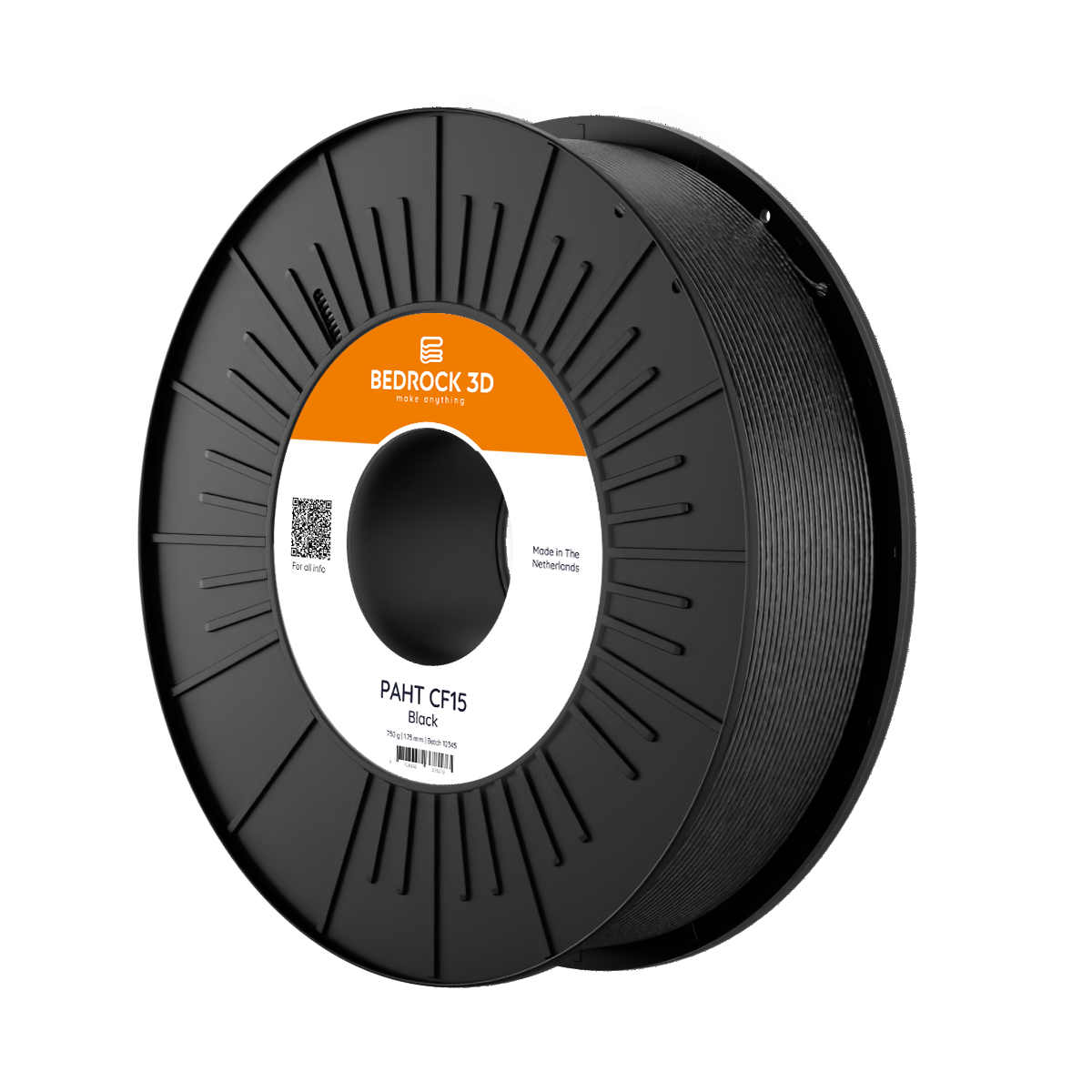

PAHT CF15

Carbon Fiber Reinforced Nylon. ESD Safe. High-Temperature. Stable.

BEDROCK 3D PAHT CF15 is built for demanding applications where standard materials fall short. Reinforced with 15% carbon fiber, this high-temp polyamide combines heat and chemical resistance with impressive mechanical strength. The result: lightweight, rigid parts that stay dimensionally accurate, even in tough environments.

ESD Safe - Surface resistivity of 10⁵–10¹¹ Ω
High Chemical Resistance – Outperforms most PA grades in harsh conditions
Heat-Resistant – Withstands continuous use up to 150 °C
Carbon Fiber Reinforced – Strong, stiff, and reliable under load
Dimensional Stability – Low shrinkage for precise, consistent parts
Low Moisture Uptake – Performs reliably even in humid settings
ESD Safe – Surface resistivity of 10⁵–10¹¹ Ω.

Purchase now

Color : Black

Size : 1.75mm

1.75mm 2.85mm

Weight : 750g

750g

Material Essentials

Technical Data Sheet (PDF Download)

Filaments Support Material Compatibility sheet (PDF Download)

Print Profiles

Print Settings

Safety Data Sheet available upon request

View Product Details

Filament you can trust
Zorgvuldig geselecteerd voor consistente prints en betrouwbare resultaten.

Crafted in the EU
Vandaag besteld, morgen printen.

A Portfolio without limits
van PLA tot PETG en meer, passend bij elk project.

Founded in 2012
We denken met je mee en helpen je het juiste filament te kiezen.

ISO 9001 Certified
We denken met je mee en helpen je het juiste filament te kiezen.

Why PAHT CF15

Not every filament is made to handle heat, stress, and complex geometries all at once. BEDROCK 3D PAHT CF15 is.

Engineered for industrial performance, it prints smoothly with hardened nozzles and is compatible with support materials like BVOH, making intricate designs possible.

For parts that demand more than ordinary performance. Whether you’re developing automotive components, functional prototypes, or parts for chemically aggressive environments, PAHT CF15 delivers the durability and precision you need.

Material Highlights

Higher chemical resistance than most PA grades
High temperature resistance up to 150 °C
Strong, rigid components High dimensional stability
Easy to process
Low moisture absorption
ESD SAFE (Surface resistivity 10^5-10^11 Ω)

Printed Object Examples

Complex geometries in challenging environments
Automotive

Print Settings

Nozzle Temperature: 250-270 °C
Build Chamber Temperature: -
Bed Temperature: 65 - 85 °C
Bed Material: Glass, PEI
Nozzle Diameter: ≥ 0.6 mm, Ruby or hardened
Print Speed: 30 - 80 mm / s

Print Profiles

We’ve got you covered with ready-to-go print profiles, just download and start creating.

Downloads

Material Properties

Tensile Strength (MPa): 18.2 (ZX), 103.2 (XY)
Flexural Modulus (MPa): 2715 (ZX), 7669 (XZ), 8258 (XY)
Elongation at Break: 0.5 % (ZX), 1.8 % (XY)
Impact Strength Izod notched (kJ/m2): 5.1 (XZ), 4.9 (XY)
Impact Strength Izod unnotched (kJ/m2): 2.9 (ZX), 18.1 (XZ), 16.4 (XY)
HDT at 0.45 MPa: 145 oC

Purchase Now
