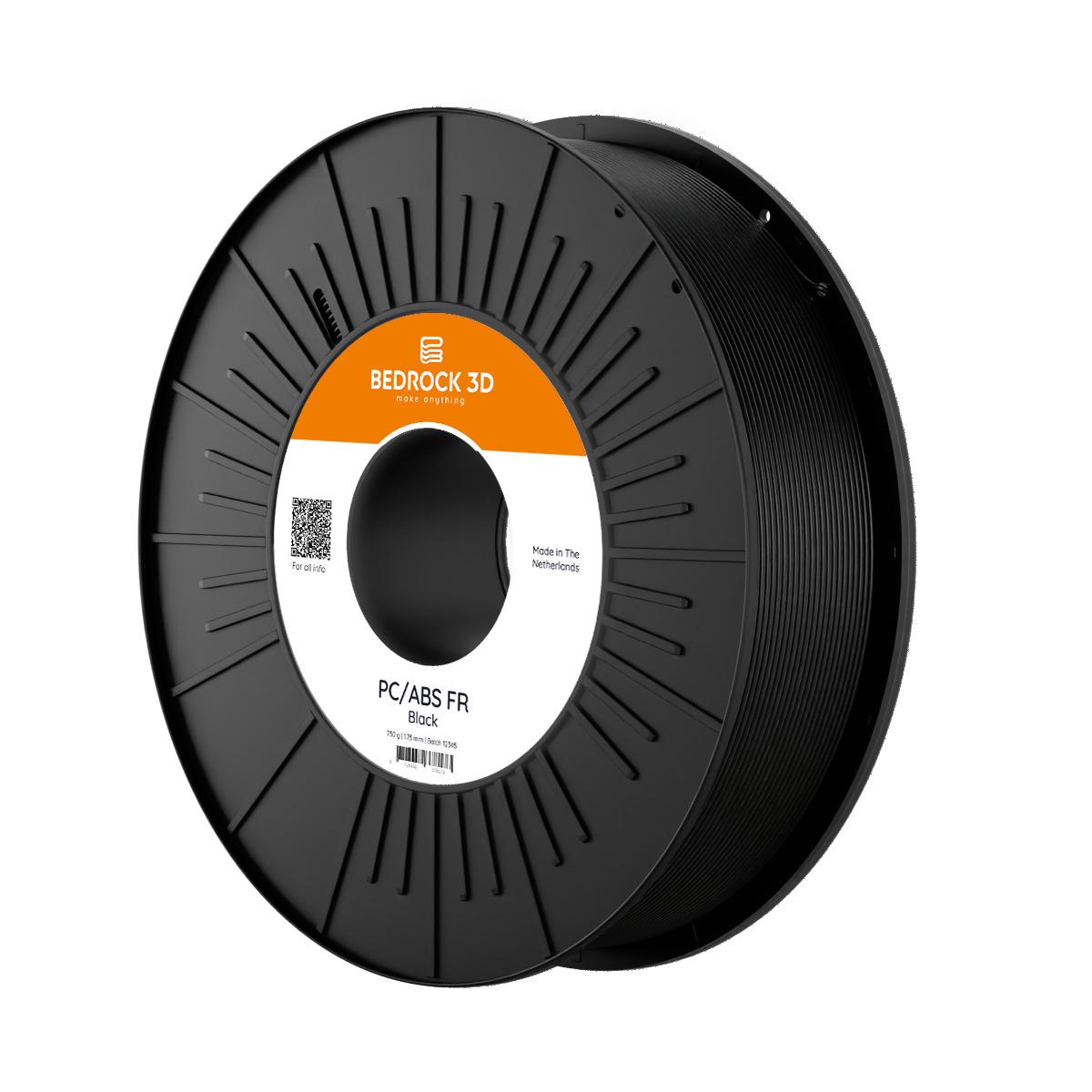

PC/ABS FR

BEDROCK 3D PC ABS/FR is designed for engineers and makers working on safety-critical applications.

A blend of Polycarbonate and ABS results in a premium material with a mix of excellent mechanical properties of PC and the comparably low printing temperature of ABS. Its flame-retardant (halogen free) properties make it the ideal choice for housings, plugs, handheld devices, automotive components, and other electrical applications where reliability and compliance are non-negotiable. With this material, you can combine strength, safety, and printability in every project.

Material Highlights

• Fulfills flame retardancy according to UL 94 V-0 (@1.5mm & 3.0mm)
• Outstanding aesthetics
• Strong layer adhesion
• High print speeds possible
• Easy to print
• Railway classification according to EN 45545-2

• Applications which require flame retardancy like Housing for Raspberry pi
• Sockets and plugs
• Housing for handheld devices or powertools
• Automotive and Transportation components

• Nozzle Temperature: 260-280 °C
• Build Chamber Temperature: Closed chamber, passively heated
• Bed Temperature: 90 - 110 °C
• Bed Material: Glass
• Nozzle Diameter: ≥ 0.4 mm
• Print Speed: 30 - 350** mm / s

  ** To achieve faster printing speeds, it may be necessary to raise the nozzle temperature. The highest speed mentioned has been determined through our latest tests, ensuring optimal surface quality with a 0.4mm nozzle and 0.2mm layer height. Please note that as printing technology and equipment evolve, we anticipate the possibility of achieving even faster speeds in the future.

We’ve got you covered with ready-to-go print profiles, just download and start creating.

• Tensile Strength (MPa): 17.3 (ZX), 50.1 (XY)
• Flexural Modulus (MPa): 1810 (ZX), 2200 (XZ), 2550 (XY)
• Elongation at Break: 0.8 % (ZX), 10.7 % (XY)
• Impact Strength Izod notched (kJ/m2): 1.8 (ZX), 30.3 (XZ), 16.8 (XY)
• Impact Strength Izod unnotched (kJ/m2): 3.0 (ZX), 87.9 (XZ), 57.0 (XY)
• HDT @ 0.45 MPa: 86 °C
